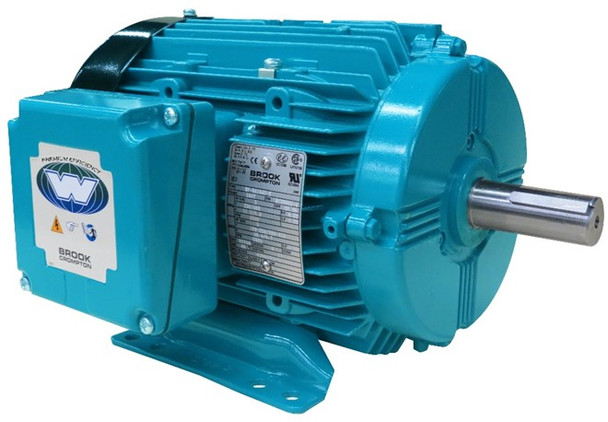

Brook Crompton BC2N025V4C, 25 HP, 3600 RPM, 230/460 VAC, 3Ph/60Hz, Cast Iron Frame, NEMA TEFC 284TSC FR

• Brook Crompton W-Series Cast Iron 143T-447T Frame (1HP to 200HP)
• Suitable for use in a diverse range of applications, adverse operating conditions and repeated starting
• Simply change the position of the feet to obtain right, left or top mounted terminal box positions
• The standard endshield can be removed and fitted with either a D flange or C face for alternative mounting options
• NEMA MG1-Part 31 inverter duty 5:1 constant torque, 10:1 variable torque
• 1.25 service factor at 60Hz, 1.0 service factor at 50Hz
• Class F insulation with class B temperature rise
• Removable/ repositionable feet for easy conversion to F1, F2, F3 (F0), or round body configuration
• IP55 degree of protection for washdown duty enclosure
• Full contact shaft seals inside both brackets for increased protection against contaminants
• Dual rated 60/50Hz at same HP
• Cast iron conduit box with drilled and tapped entry is rotatable in 90 degree increments
• Internal tropicproof
• 3 year warranty
• Refer to Brook Crompton Motor Catalog pgs 12-18
