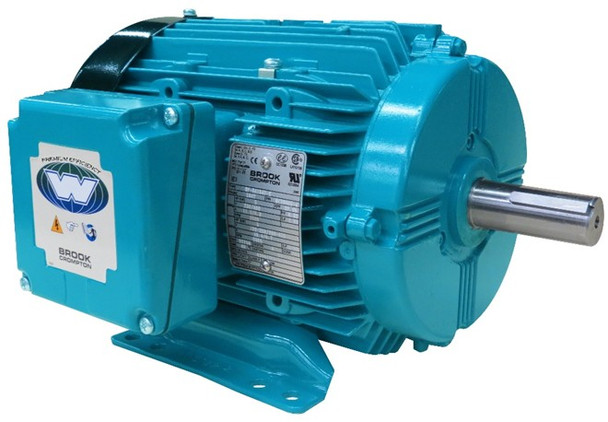

Brook Crompton BF4N.50V2, 0.5 HP, 1800 RPM, 230/460 VAC, 3Ph/60Hz, Aluminum Frame, NEMA TEFC 56 FR

• Brook Crompton W-Series 56/56C frame (0.25HP to 3HP). Available in Foot mount and C-face mount
• Engineered for a diverse range of applications, including repeated starts and occasional overloading
• NEMA MG1-Part 31 inverter duty 5:1 constant torque, 10:1 variable torque
• 1.25 service factor at 60Hz, 1.0 service factor at 50Hz
• Class F insulation with class B temperature rise
• IP55 protection for washdown duty enclosure
• Full contact shaft seals inside both brackets for increased protection against contaminants
• Dual rated 60/50Hz at same HP
• Cast aluminum conduit box (with drilled & tapped entry) is rotatable in 90 degree increments.
• CSA approved for Class I; Division 2; Groups A, B, C & D, Zone 2; Groups IIA & IIB T3 with VFD
• Internal tropicproof
• Multi-Mount (convert conduit box to F1, F2, F3, or round body configuration by removing/repositioning the feet)
• The standard endshield can be removed and fitted with a C face for alternative mounting
• 1 year warranty
• Refer to Brook Crompton Motor Catalog pgs 2-4

Motor Datasheet (PDF Download)

Brook Crompton Motor Catalog 2025 (PDF download)
