Brook Crompton

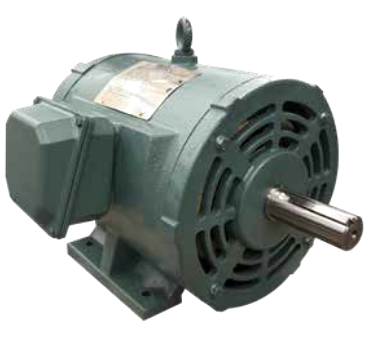

Brook Crompton HO2N100-4, 100 HP, 3600 RPM, 230/460 VAC, 3Ph/60Hz, Cast Iron Frame, NEMA ODP 365TS FR

Mfg's Part Number:
HO2N100-4
Availability:
Ships in 1-2 days when in-stock
Your Price: $7,611.00

Description

  • Brook Crompton Open Drip Proof Cast Iron 182T-447T Frame (3HP-200HP)
  • Suitable for general applications in clean, dry, indoor environments.
  • Perfect for pumps, fans, compressors, and industrial uses.
  • Robust, reliable, energy efficient and long-lasting durability.
  • NEMA MG1-Part 31 inverter duty
  • 1.15 service factor at 60Hz, 1.0 service factor at 50Hz
  • Class F insulation with class B temperature rise
  • Premium efficient
  • Open drip proof enclosure
  • IP22 degree of protection
  • Dual rated 60/50Hz at same HP
  • 3 year warranty
  • Refer to Brook Crompton Motor Catalog pgs 29-33

Contact Us for Datasheet

Brook Crompton Motor Catalog 2025 (PDF download)

View AllClose

Additional Information

Horsepower:
100 HP
RPM:
3600 RPM (2-Pole)
Phase:
3-Phase/60Hz
Voltage:
230/460 VAC
NEMA or IEC:
NEMA
Frame Material:
Cast Iron
Enclosure:
ODP (Open Drip Proof)
Mounting:
Feet (non-removable)
