Brook Crompton

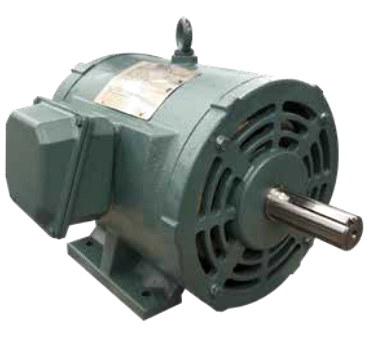

Brook Crompton HO4N050-4, 50 HP, 1800 RPM, 230/460 VAC, 3Ph/60Hz, Cast Iron Frame, NEMA ODP 326T FR
- Mfg's Part Number:
- HO4N050-4
- Availability:
- Ships in 1-2 days when in-stock
Description
- Brook Crompton Open Drip Proof Cast Iron 182T-447T Frame (3HP-200HP)
- Suitable for general applications in clean, dry, indoor environments.
- Perfect for pumps, fans, compressors, and industrial uses.
- Robust, reliable, energy efficient and long-lasting durability.
- NEMA MG1-Part 31 inverter duty
- 1.15 service factor at 60Hz, 1.0 service factor at 50Hz
- Class F insulation with class B temperature rise
- Premium efficient
- Open drip proof enclosure
- IP22 degree of protection
- Dual rated 60/50Hz at same HP
- 3 year warranty
- Refer to Brook Crompton Motor Catalog pgs 29-33
Additional Information
Horsepower: |
50 HP |
RPM: |
1800 RPM (4-Pole) |
Phase: |
3-Phase/60Hz |
Voltage: |
230/460 VAC |
NEMA or IEC: |
NEMA |
Frame Material: |
Cast Iron |
Enclosure: |
ODP (Open Drip Proof) |
Mounting: |
Feet (non-removable) |
