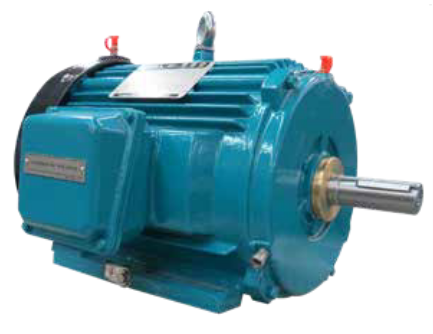

Brook Crompton MC2N040-9, 40 HP, 3600 RPM, 460 VAC, 3Ph/60Hz, Cast Iron Frame, NEMA IEEE841 324TS FR

• Brook Crompton IEEE841 Cast Iron 143T-449T Frame (1HP to 300HP)
• Premium design, suitable for use in severe duty applications (such as chemical, mining, petroleum, etc.)
• NEMA MG1-Part 31 inverter duty 5:1 constant torque, 10:1 variable torque
• 1.15 service factor at 60Hz, 1.0 service factor at 50Hz
• Class F insulation with class B temperature rise
• IP56 degree of protection for washdown duty applications
• Labyrinth style seal on both ends of shaft
• Low vibration level of .08 in/s or less
• Foot flatness of .005 in max
• Extended grease tubes for re-greasing in the field without disassembly of the motor
• Corrosion resistant grade 5 hardware & Epoxy paint
• Special shaft TIR specification (1/2 of NEMA standard)
• Dual rated 60/50Hz at same HP
• CSA/UL approved for for Class I Div. 2/ Zone 2 Gr. A,B,C,D. Class II Div. 2/ Zone 22 Gr. F & G
• IEEE841 test report supplied with each motor
• 5 year warranty
• Refer to Brook Crompton Motor Catalog pgs 19-23
