Dart Controls

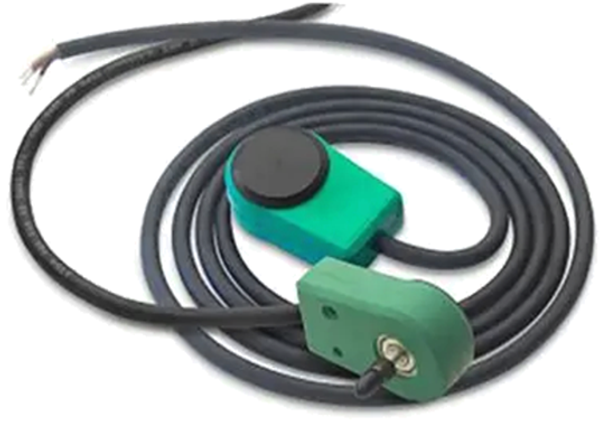

Dart PU-40R Speed Sensor, Indoor-Outdoor rated, Pulse/Rev Output = 20 PPR
- Mfg's Part Number:
- PU-40R
- Availability:
- Stock item, usually ships in 1-3 days
Description
The Dart PU Series Half Effect Encoders are incremental type, rated 5-24VDC supply, NPN/Open Collector output. The model number determines the output pulses/revolution.The PU Series is very popular for its simplicity, efficiency and rugged design. Installation is simple - drill and tap a target shaft and youre done. Dirty, dusty, wet (wash down) and extreme outdoor conditions are not an issue for the PU Series. With the PU-E Series (indoor) and PU-R Series (outdoor / wash down), the user can find the right sensor for the application. The PU Series is sold worldwide on a wide variety of applications where reliable and cost-effective speed sensing is needed.
- Single screw installation - no alignment needed.
- For shaft speeds up to 5000 RPM
- 6' cable provided (may be extended up to 300 ft depending on signal quality)
- Supply voltage +4.5 to +30 VDC
- 1 to 20 pulse/revolution output
- NPN and PNP output - NPN sinks 50mA max*
- -40C to +125C ambient temperature
- NPN open collector output sinks 20mA max
- Indoor and outdoor/washdown rated models
- Santoprene injection molded head
